Customized Hydraulic Lifting Equipment 10m 15m 20m Lifting Height
Hydraulic Scissor Lift
Hydraulic lifting platform introduction:
The mobile scissor is a wide range of special equipment for
high-altitude work. Its scissor mechanical structure makes the
lifting platform have high stability, wide working platform and
high bearing capacity, so that the aerial work range is larger, and
it is suitable for multiple people to work at the same time. It
makes aerial work more efficient and safer.
A Hydraulic Scissor Lift is a mechanical device used for vertical
lifting. It consists of a platform and a series of folding scissors
arms that provide lifting force through a hydraulic system.
Hydraulic shear lifts are usually powered by electric or hydraulic
pumps, which achieve smooth lifting and positioning through a
control system.
Hydraulic Lifting Platform Specification:
product specifications | GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 |
| working height | 7.8m | 10m | 12m | 13.8m |
| platform height | 5.8m | 8m | 10m | 11.8m |
| platform height stowed | 1.07m | 1.23m | 1.37m | 1.49m |
| platform length | 1.67m | 2.27m | 2.27m | 2.27m |
| platform extension length | 0.9m | 0.9m | 0.9m | 0.9m |
| platform width | 0.76m | 0.81m | 1.17m | 1.17m |
| overall height | 2.18m | 2.34m | 2.48m | 2.59m |
| overall length | 1.86m | 2.42m | 2.42m | 2.42m |
| overall width | 0.76m | 0.81m | 1.17m | 1.17m |
| wheelbase | 1.31m | 1.87m | 1.87m | 1.87m |
| ground clearance | 0.1m | 0.1m | 0.1m | 0.1m |
| lift capacity | 230kg | 230kg | 320kg | 320kg |
| lift capacity-extension deck | 113kg | 113kg | 113kg | 113kg |
| lift up | 27s | 37s | 45s | 50s |
| lift down | 22s | 32s | 35s | 38s |
| weight | 1415kg | 2250kg | 2440kg | 2860kg |
| drive speed ( platform lowered ) | 0-5km/h | 0-3.5km/h | 0-3.5km/h | 0-3.5km/h |
| drive speed ( platform elevated ) | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h |
| turning radius-inside | 0 | 0 | 0 | 0 |
| turning radius-outside | 1.64m | 2.10m | 2.14m | 2.14m |
| gradeability | 30% | 25% | 25% | 25% |
| maximum tilt | 3° | 3° | 3° | 3° |
| non-marking solid tires | 15×5 | 15×5 | 15×5 | 15×5 |
| battery | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah |
| charger | 30A automatic | 30A automatic | 30A automatic | 30A automatic |
Hydraulic lifting platform Performance:
1. Reliability and versatility , enhance efficiency
2. Excellent mobility
Compact body can easily pass through single and double channel
doorway , using non-marking solid tire.
3. Special locations
Feature of low noise is perfectly suitable for the noise-sensitive
environment , such as office buildings , shopping malls , hotels ,
schools
4. Compact and flexible
Can be easily and flexibly operated in crowded working conditions
such as construction site , elevator , and narrow corridor .
Lift-up , lift-down , turning , forward and backward movements can
be easily operated by single person.
The applications of hydraulic scissor lift:
1.Material Handling: Hydraulic scissor lifts are extensively used
for lifting and transporting heavy materials, equipment, and goods
within warehouses, manufacturing facilities, and distribution
centers. They provide a safe and efficient solution for loading and
unloading tasks, inventory management, and logistics operations.
2.Maintenance and Repairs: Scissor lifts are widely used in
maintenance and repair work across industries such as construction,
aviation, automotive, and facilities management. They provide
elevated platforms for technicians to access and work on elevated
structures, machinery, or equipment, making tasks like inspections,
repairs, and installations easier and safer.
3.Construction and Building Maintenance: Hydraulic scissor lifts
play a crucial role in the construction industry for tasks like
installation of building facades, glass panels, HVAC systems, and
electrical fixtures. They provide a stable and elevated work
platform for construction workers to perform tasks at different
heights.

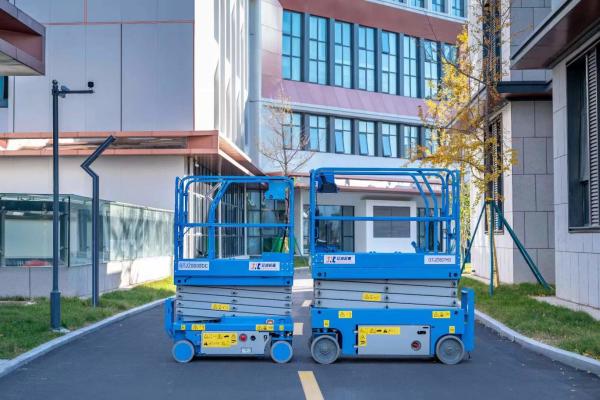

Hydraulic Lifting Platform Photos:
