OEM ODM Electric overhead crane 5ton High Lifting Speed double
girder bridge crane
Overhead crane
Our overhead bridge cranes are typically for heavy-duty material
handling needs. Workstation cranes are lightweight and can be
installed in any workspace. Jib cranes provide an excellent way to
transfer material from on station to another. Gantry cranes work
great for moving overhead cranes to different areas.
We have built our business and reputation on the principles of
professionalism: quality materials, top craftsmanship, accurate
estimates, and strict project deadlines.

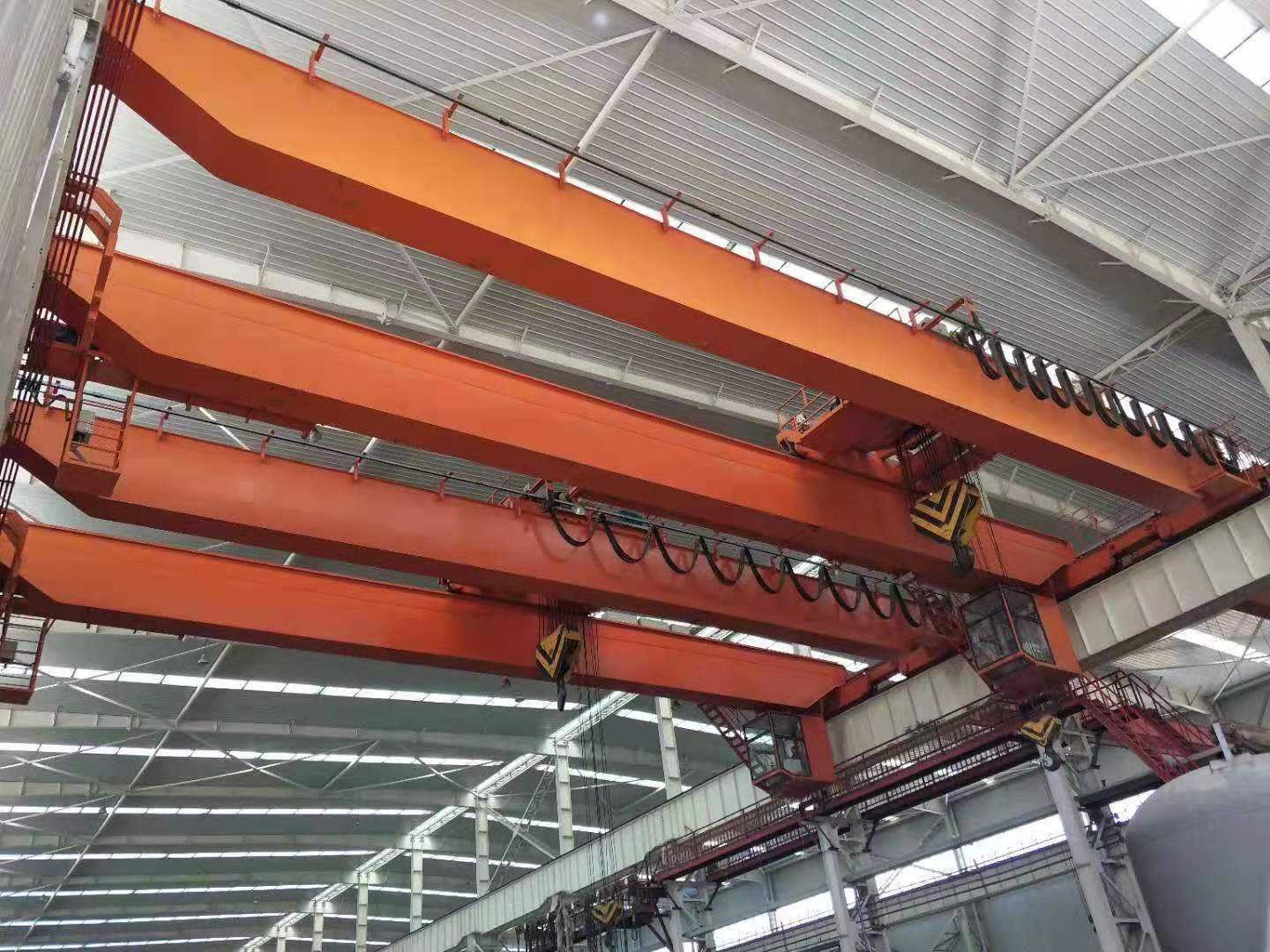

Double beam bridge crane is also known as double beam crane. Its
bridge runs longitudinally along the track laid on the viaducts on
both sides, and the lifting trolley runs transversely along the
track laid on the bridge, forming a rectangular working range,
which can make full use of the space under the bridge to lift
materials without being hindered by ground equipment.
Advantages:
1.saving space
It can utilize the space below the ceiling rafters, thus ensuring a
larger lifting space.
2.Smooth travelling
.The use of side roller guide paths ensures smooth travelling,
while the main beam can be designed based on loading capacity and
span.
3.More efficient
The shorter total end carriage length and optimal location of the
gearmotor installation allow for more efficient use of the
workspace.
4.double girder, double speed
Dual speed and polyurethane wheel versions can be used to reduce
driving noise and vibration.
Technical Parameter:
| Technical Specifications |
|
| Lifting Capacity | Span | Lifting | Work Duty | Main Lifting | Vice Lifting | Trolley Traveling | Crane Traveling | Track |
| Height | Speed | Speed | Speed | Speed |
| | | | |
| t | m | m | | m/min | m/min | m/min | m/min | |
| 5 | 13.5~19.5 | 18 | A5 | 0.84~8.4 | | 3.4~34 | 5.1~51 | 38kg |
| 22.5~31.5 | 5~50 |
| 5 | 13.5~19.5 | 18 | A5 | 0.78~7.8 | | 3~30 | 5~50 | 38kg |
| 22.5~31.5 | 5.2~52 |
| 16/5 | 13.5~19.5 | 18/18 | A5 | 0.76~7.6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| 20/5 | 13.5~19.5 | 18/18 | A5 | 0.6~6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| 32/5 | 13.5~19.5 | 18/18 | A5 | 0.52~5.2 | 0.84~8.4 | 3.1~31 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| Oct-50 | 13.5~19.5 | 18/18 | A5 | 0.43~3.9 | 0.78~7.8 | 3.6~36 | 4.8~48 | 43kg |
| 22.5~31.5 | 5.4~54 |
| Notes: Customizable |
Application:
Double girder overhead crane is an important tool to realize
mechanization and automation of production process in modern
industrial production and lifting and transportation. Therefore,
double-girder overhead cranes fit a variety of needs, such as indoor and outdoor industrial and mining enterprises, iron and
steel chemical industry, railway transportation, port terminals and
logistics turnover departments and places, its flexibility of use has already earned a high reputation in these
industries.
About products: In order to better serve you, please tell us the
following data:
1. Bearing capacity
2. Span (track center distance)
3. Lifting height (from the hook center to the ground)
4. Power supply: voltage
5. Working environment: description of lifting cargo, service
environment and temperature
6. If the workshop drawings can be provided, it will be a better
support.
