Factory direct overhead Crane Double Girder 15t High Lifting Speed
with electric hoist eot crane
Introduction:

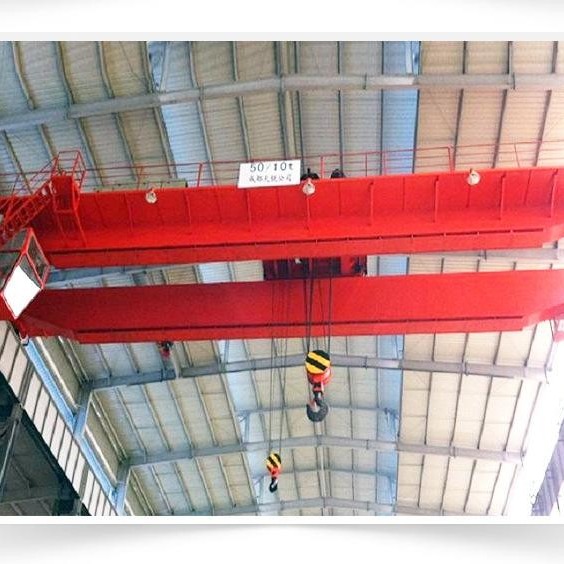

Double beam bridge crane is designed to lift heavy materials or
transfer goods in warehouse, factory, dock, logistics company.etc..
Its bridge runs longitudinally along the track laid on the viaducts
on both sides, and the lifting trolley runs transversely along the
track laid on the bridge, forming a rectangular working range,
which can make full use of the space under the bridge to lift or
transfer materials.
Advantages:
1. Reasonable structure and compact appearance
High site utilization, large operation range, wide adaptability,
time-saving and labor saving, low noise
2. Excellent performance and large lifting capacity
Light deadweight, small wheel pressure, simple structure,
convenient operation and stable operation performance
3. Simple operation and land saving
The height above the track surface is small, occupying small space,
saving space
4. Factory direct, strong OEM team
Customized production according to customer requirements, fast
delivery, support for site measurement, installation and
after-sales warranty
Technical Parameter:
| Technical Specifications |
|
| Lifting Capacity | Span | Lifting | Work Duty | Main Lifting | Vice Lifting | Trolley Traveling | Crane Traveling | Track |
| Height | Speed | Speed | Speed | Speed |
| | | | |
| t | m | m | | m/min | m/min | m/min | m/min | |
| 5 | 13.5~19.5 | 18 | A5 | 0.84~8.4 | | 3.4~34 | 5.1~51 | 38kg |
| 22.5~31.5 | 5~50 |
| 5 | 13.5~19.5 | 18 | A5 | 0.78~7.8 | | 3~30 | 5~50 | 38kg |
| 22.5~31.5 | 5.2~52 |
| 16/5 | 13.5~19.5 | 18/18 | A5 | 0.76~7.6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| 20/5 | 13.5~19.5 | 18/18 | A5 | 0.6~6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| 32/5 | 13.5~19.5 | 18/18 | A5 | 0.52~5.2 | 0.84~8.4 | 3.1~31 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| Oct-50 | 13.5~19.5 | 18/18 | A5 | 0.43~3.9 | 0.78~7.8 | 3.6~36 | 4.8~48 | 43kg |
| 22.5~31.5 | 5.4~54 |
| Notes: Customizable |
Application:
Double girder overhead crane is an important tool to realize
mechanization and automation of production process in modern
industrial production and lifting and transportation. Therefore,
double-girder overhead cranes are widely used in indoor and outdoor
industrial and mining enterprises, iron and steel chemical
industry, railway transportation, port terminals and logistics
turnover departments and places, and gained high reputation in
these fields.
Before quoting: In order to better serve you, please let us know
the following data:
1. Bearing capacity
2. Span (track center distance)
3. Lifting height (from the hook center to the ground)
4. Power supply: voltage
5. Working environment: description of lifting cargo, service
environment and temperature
6. If the workshop drawings can be provided, it will be a better
support.
