Flexible Free Standing Articulating Jib Crane 600kg Cantilever Jib
Cranes For Factory Maintenance Rotation Angle
Flexible Free Standing articulating Jib crane 600kg cantilever
cranes For factory Production Maintenance
What is a Jib Crane? It is a crane with a horizontal member, commonly known as the jib or boom. A jib is an operating arm that
extends horizontally from the crane. The role of the jib is to
support a movable hoist fixed to either a wall or pillar mounted on
the floor. It is mostly used in industrial premises.
The jib swings typically through an arc or is fixed in such a way
that it provides additional lateral movement. On the crane, the jib
is a tilted strut whose role is to support the fixed pulley lock.
Other times, cranes are fitted on top of warehouse floors to help
with lifting goods on the floors to top places. On the load, there
are cables attached several times around a fixed block and directly
on the load. The end of the cable that is not connected is either
pulled manually or by using a winding device.
The system of pulleys delivers a force to the load. So, the force
applied is multiplied by the amount of cable length passing in
between a couple of blocks. The product is referred to as the
mechanical advantage.
Articulating Jib Crane Introduction:
Articulated cantilever cranes can place loads in areas that
traditional cantilevers cannot reach.Their two flexiable arms are
its biggest advantage.
Articulating Jib Cranes provide maximum material handling
flexibility in a manufacturing facility. They include two rotating
arms that enable the system to maneuver loads around obstacles.
They provide easy rotation and precision load placement when
placing loads in tight areas. These cranes can even reach around
corners and under other equipment.
Articulating Jib Crane Safety features:
1. Overload protection: If the materials or electric current
overstep the capacity, the crane;
will give a sharp warning for protection itself;
2. Rubber buffers;
3. Current overload protection system;
4. Voltage lower protection function.
Articulating Jib Crane Specification:
Capacity: 0.3-5ton customized.
Arm length: up to 5 meters
Lifting height: 3-5 meters
operating duty. M3-M5
Rotation angle: 120-360 °
Working voltage: 220V~690V, 50-60Hz, 3ph AC
Crane control mode. Ground control/remote control
with hoist or not: with hoist, 1 set.
Control: remote control

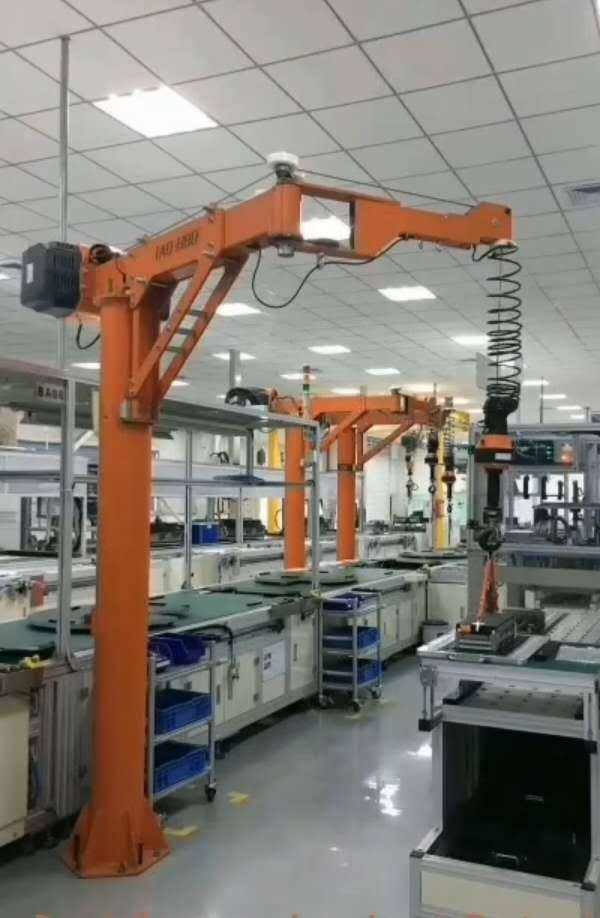

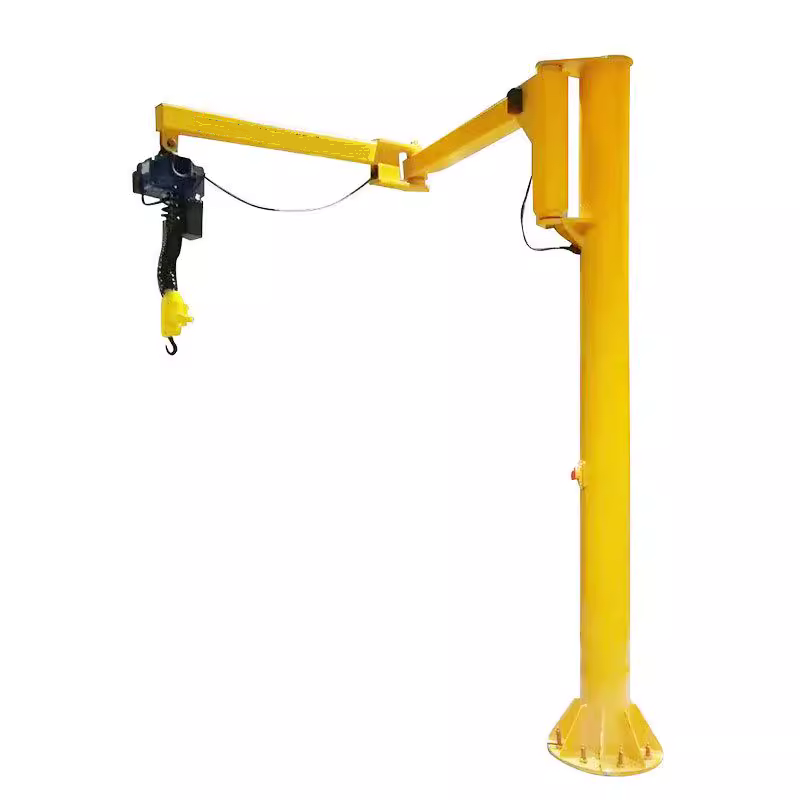

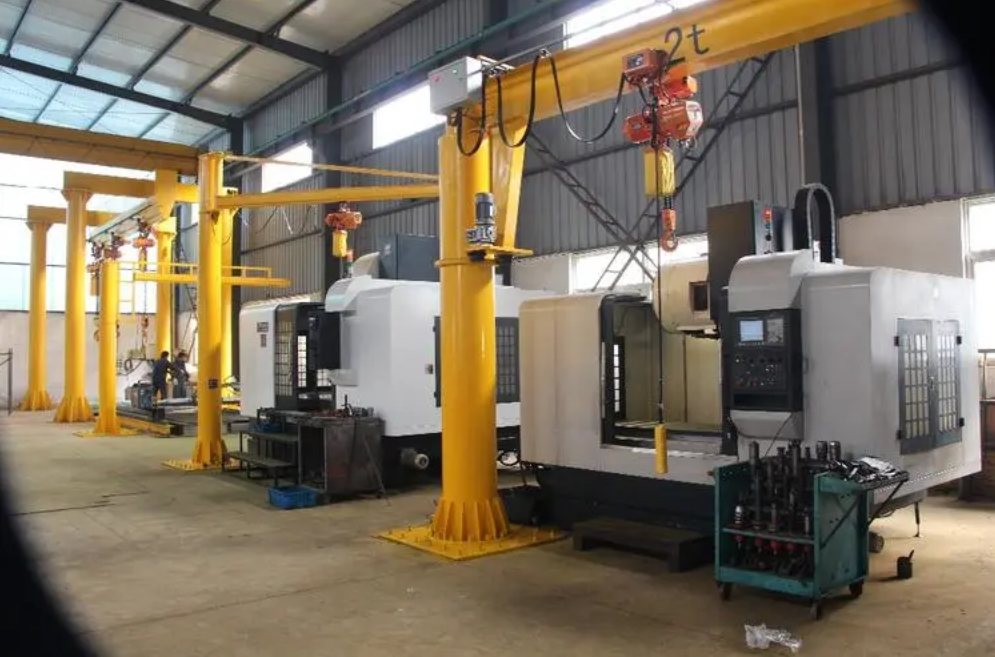

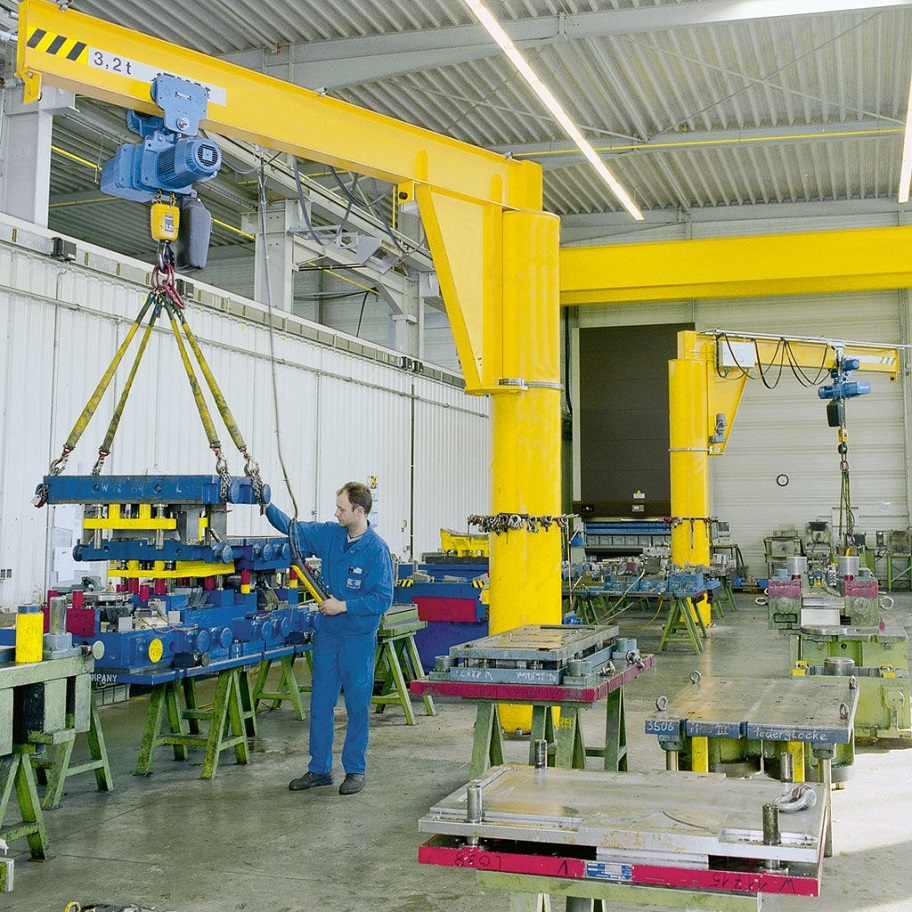

Articulating Jib Crane Photo:
