High Stability 10t Double Girder Overhead Crane For Iron And Steel
Chemical Industry
Introduction:
Double girder overhead cranes are generally composed of three major
parts: mechanical, electrical and metal structures. The appearance
of the bridge crane is like a single-span flat bridge whose two
ends are supported on two parallel overhead rails and run in
translation. Double-girder cranes are widely used in indoor and
outdoor industrial and mining enterprises, steel chemical industry,
railway transportation, port terminals and logistics turnover and
other departments and places.
Technical Parameter:
| Cap (t) | 5/ 10 |
| Span (m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 |
Main Dimensions (mm) | H | 1763/1800 |
| H1 | 765 |
| H2 | 24 | 126 | 226 | 376 | 526 | 676 | 826 | 976 |
| H3 | 2396 | 2546 | 2646 | 2796 | 2946 | 3096 | 3246 | 3396 |
| H4 | 71-552 |
| K | 1400-2000 |
| W | 3400 | 3550 | 5000 |
| B | 5054 | 5204 | 5948 |
| b | 230 |
| Max. Wheel Load (KN) | 72-152 |
| Total Power (KW) | 10-15.5 |
| Lifting Height (m) | 16 |
| Hoisting Speed (m/min) | 5 |
Composition:
Overhead cranes are generally composed of three major parts:
mechanical, electrical and metal structures. The appearance of the
bridge crane is like a single-span flat-panel bridge whose two ends
are supported on two parallel overhead rails.
Mechanical part: It is divided into three mechanisms, namely the
hoisting mechanism, the trolley operating mechanism and the cart
operating mechanism. The hoisting mechanism is used to vertically
lift objects, the trolley operating mechanism is used to carry the
load for lateral movement; the cart operating mechanism is used to
vertically move the hoisting trolley and objects to achieve the
purpose of handling and loading and unloading goods in
three-dimensional space.
Metal structure part: It is composed of bridge frame and small
frame.
Electrical part: consists of electrical equipment and electrical
lines.
Application:
1. Bridge-type double-girder cranes are widely used in factories,
warehouses, stockyards and other occasions to lift goods. It is
forbidden to use in flammable, explosive and corrosive medium
environments. There are two types of operation on the ground and in
the control room. There are two types of operation room, open type
and closed type, which can be divided into two types of left or
right installation according to the actual situation.
2. Bridge-type double-girder cranes are widely used in workshops,
warehouses, stockyards, etc. It has the advantages of compact size,
low building headroom, light weight and small wheel pressure.

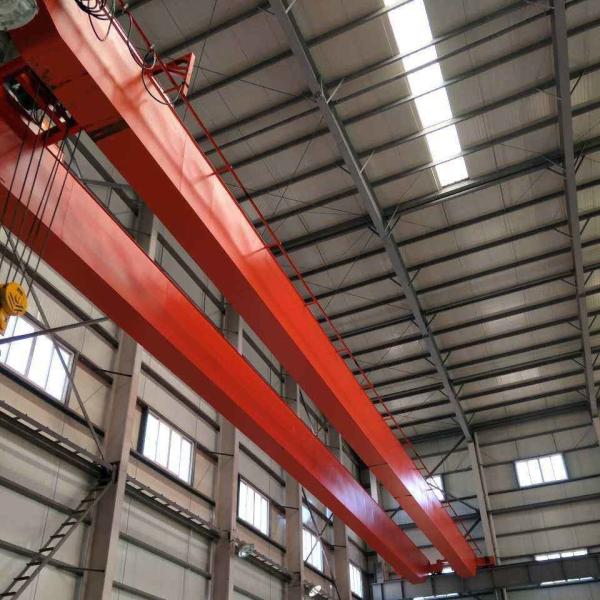

Photos:
