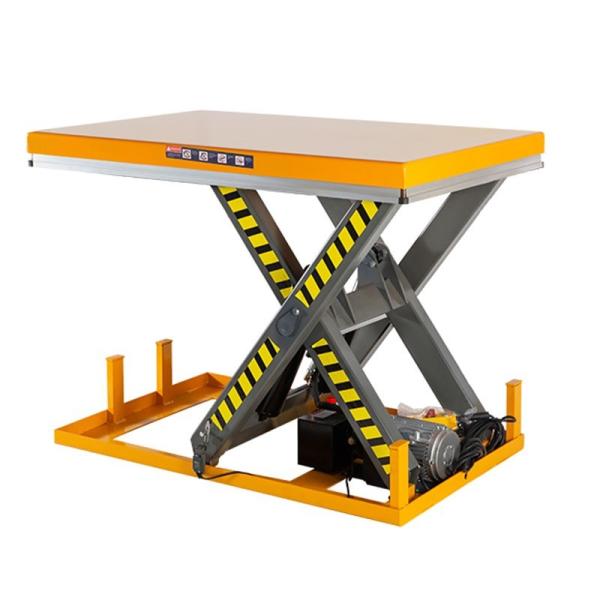

Scissor Type Heavy Duty Electro Hydraulic Lift Work Table 1m Height

Ask Lasest Price
Certification :	CE ISO GOST
Price :	Negotiation
Delivery Time :	30 workdays
Payment Terms :	L/C, T/T
Supply Ability :	5000 sets per year

Add to Cart

Product Details
Company Profile

Scissor Type Heavy Duty Electro Hydraulic Lift Work Table 1m Height

Scissor Type Heavy Duty Electro-Hydraulic Lifting Work Platform

Electro-Hydraulic Lifting Work Platform Introduction:

Great for moving bulky materials. Maximize worker and machine productivity by hydraulically positioning work at just the right level. Raising or lowering feed or accumulation from machines or conveyor belts. Suitable for handling bulky materials. Raise the load to the desired position to prevent back injuries and reduce flex caused by heavy-duty tasks like lifting and bending.

Electro-Hydraulic Lifting Work Platform Technical Parameter:

Model	Load Capacity(KG)	Self Height (MM)	Max Platform Height(MM)	Platform Size(MM)	Lifting time (S)	Net weight (KG)
HW1001	1000	205	1000	1300×820	20~25	160
HW1002	1000	205	1000	1600×1000	20~25	186
HW1003	1000	240	1300	1700×850	30~35	200
HW1004	1000	240	1300	1700×1000	30~35	210
HW1005	1000	240	1300	2000×850	30~35	212
HW1006	1000	240	1300	2000×1000	30~35	223
HW1007	1000	240	1300	1700×1500	30~35	365
HW1008	1000	240	1300	2000×1700	30~35	430

Electro-Hydraulic Lifting Work Platform Application:

The fixed hydraulic lift is a kind of cargo lifting equipment with good lifting stability and wide application range. It is mainly used for the transportation of goods between the height difference of the production line; the material is on and off the line; the height of the workpiece is adjusted when the workpiece is assembled; the high feeder Feeding; lifting of parts during large-scale equipment assembly; loading and unloading of large machine tools; storage and loading and unloading sites are matched with forklifts and other handling vehicles for fast loading and unloading of goods, etc.

Electro-Hydraulic Lifting Work Platform Details:
