Heavy Duty 5t~30 Trackless Electric Transfer Cart Anti Explosion
Electric Transfer Cart Descripition:
The trackless electric flat car is powered by a battery, no
external power supply is required, and the rubber wheel does not
need a track. It can rotate freely in 360° and is not restricted by
the track. The remote control handle is easy to operate, convenient
and flexible, but it is not suitable for workplaces with high
frequency of use. Wheel handling equipment with arbitrary steering
can be operated manually, get rid of the dependence of rail cars on
ground tracks, and can walk directly on the ground without damaging
the infrastructure. It can rotate freely, is not restricted by
space and ground, and can change the walking direction and route at
any time. Ideal for use in venues where the running route is not
fixed.
Electric Transfer Cart Advantage:
It can turn 360° flexibly, with buttons such as forward, backward,
left and right, speed regulation, emergency stop, abnormal light
indication, power-on light indication, and permission key. This
model has won the favor of many enterprises and manufacturers due
to its simple operation, stable turning and easy maintenance, etc.
Electric Transfer Cart Parameters:
Technical parameters for trackless electric transfer carts |
Rated load(t) | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 150 |
Impacted rated load(t) | 7.5 | 15 | 22.5 | 30 | 45 | 60 | 75 | 225 |
Structure of frame | steel plates welded, beam structure |
Max. wheel load(t) | 2.8 | 4.3 | 4.8 | 5.6 | 7.7 | 10 | 12 | 27 |
Ground requirement | cement floor | steel plate ground |
Table size(mm) | 3000×
2000 | 3600×
2000 | 4000×
2200 | 4500×
2200 | 5000×
2200 | 5500×
2300 | 6000×
2300 | 10000×
3000 |
Height of the whole cart(mm) | 450 | 530 | 600 | 600 | 650 | 700 | 700 | 1200 |
Ground clearanc(mm) | 50 | 75 |
Turning radius(mm) | 2501 | 3101 | 3401 | 3901 | 4301 | 4801 | 5201 | 10001 |
Turning type | turning while driving with no stop |
Control method for turning | control button |
Turning structure | mechanical |
Wheel material | ZG55+hydropur ture |
Running speed(m/min) | 0-15 | 0-12 |
Brake principle | electric magnetic brake |
Operation method | with wire or no wire |
Battery model | D-250x24 | D-33x24 | D-400x24 | D-440x24 | D-250x36 | D-330x36 | D-440x36 | D-600x36 |
Battery maintenance | free of maintenance |
Charger's installation | installed on cart | split-type |
Electric Transfer Cart Applications:
For horizontal load or vertical load transfers of a wide range of
material, we have the heavy duty, high quality Transfer Cart
solution you need. Transfer carts are used: to carry loads along
assembly lines; transfer material from one work station to the
next; store and transport an entire shift worth of production. They
can even be used as a stable yet moveable machine base. We supply
free drawing for our customer and customize a special transfer cart
for client according to their requirement.We have the solution you
need and each style can be designed for your specific application.

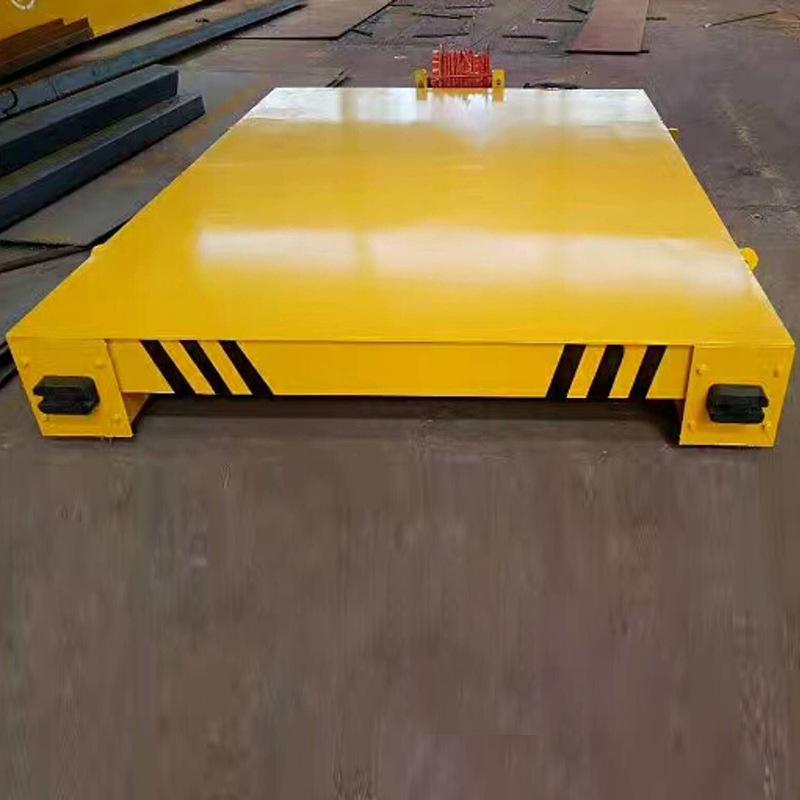

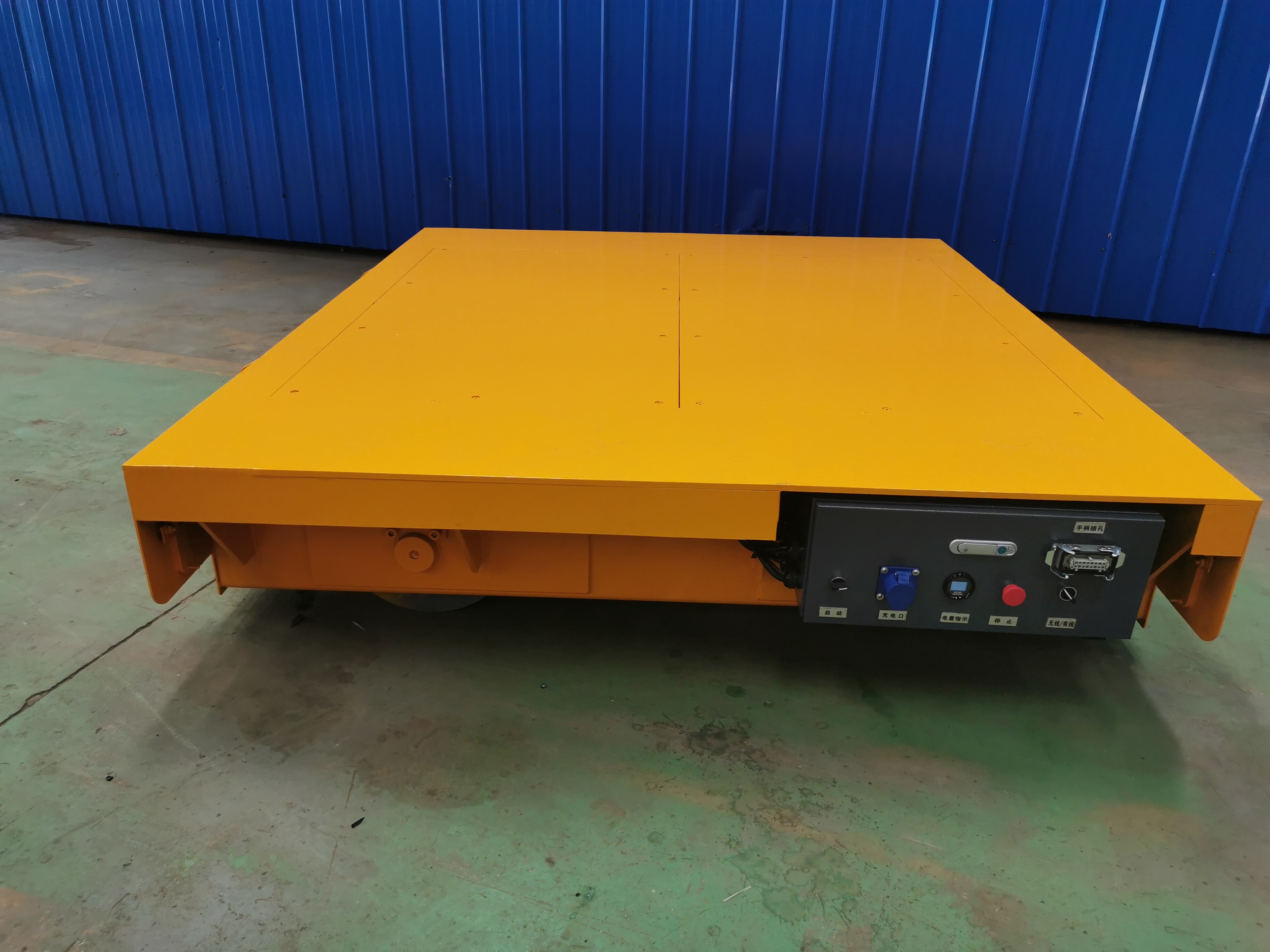

Electric Transfer Cart Photos:
