Flexible And Adaptable Traveling Jib Crane For Efficient Automatic
Production Lines
Description:
The mobile cantilever crane is more flexible and adaptable, and it
is a separate emergency hoisting equipment necessary for efficient
automatic production lines. With it, it can ensure that the
production line is unobstructed.
The mobile jib crane is equipped with a chain electric hoist (or
wire rope electric hoist) on one end of the 300° slewing
cantilever, which is used for lifting the goods or workpieces: the
other end is set with a counterweight, which rotates relative to
the jib at the same time. play a balancing role. It is widely used
in the installation of small equipment in factories and mines,
workshops, fields and warehouses. Loading and unloading of goods
and workpieces, as well as low buildings are not suitable for
erecting vehicles and other places.
The EBZ mobile crane can run to the required location in any
direction, and the electric hoist can walk on the cantilever, which
is suitable for the occasions where the heavy objects need to
travel and rotate. The lifting of the heavy objects is carried out
up and down by the electric hoist. The lifting equipment has the
characteristics of simple structure, convenient operation,
flexibility, large working space and wide application range.
Drawing and Specification:
Rated Capacity | t | 0.5 | 1 | 2 | 3 | 5 | 10 |
Beam length | mm | 2000~6000 |
Lifting height | mm | 2000~6000 |
Lifting speed | m/min | 8; 8/0.8 |
Travelling speed | m/min | 10; 20 |
Turning speed | r/min | 0.76 | 0.69 | 0.6 | 0.53 | 0.48 | 0.46 |
Turning degree | degree | 360° |
Duty Class | A3 |
Power source | 380V, 50HZ, 3 phase (or other standard) |
Working temperature | -20~42°C |
Control model | Pendant pushbutton control or remote control |
Safe Operation:
When operating a jib crane, all national safety technical codes for
crane use and operation should be followed. To ensure safety and
avoid damage to the equipment, please observe the following safety
precautions.
The use of jib cranes to transport people is not permitted.
Do not lift loads over personnel. Do not pull or tow loads.
Overloading is not allowed.
Avoid hitting the limit switch with the lifting hook during normal
operation.
Other important operating tips: The load spreader must be hung on
the trolley with a flexible connection. Rigid connections generate
uncontrollable forces that eventually lead to fatigue fracture.
When the load is loaded, the electric door is not allowed to be
pulled. When the arm rotates manually, only the hook can be pulled,
and the electric door and cable are not allowed to be pulled.
The fasteners on the jib crane should be checked and tightened once
every 6 months.

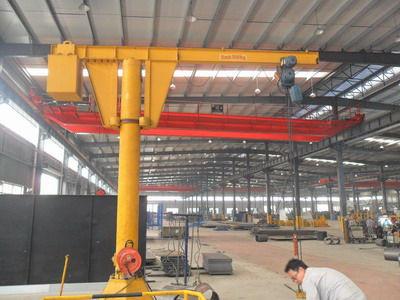

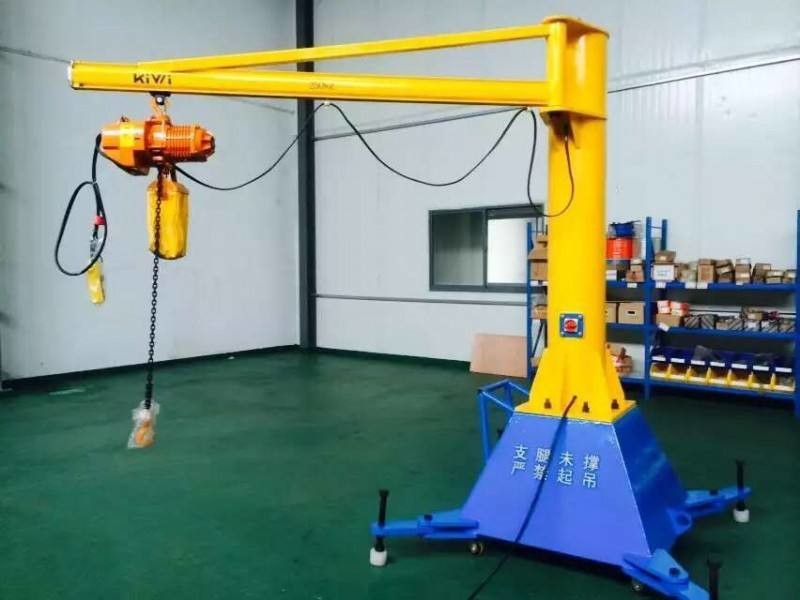

Photo:
