Customized 10.5-16m Span Harbour Portal Crane For Pilling Containers

Ask Lasest Price
Certification :	CE ISO GOST
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	5 sets per year
Delivery Time :	6 month

Add to Cart

Product Details
Company Profile

Customized 10.5-16m Span Harbour Portal Crane For Pilling Containers

Customized Harbour Portal Crane With Hoisting Slewing Luffing And Running Mechanisms

Harbour Portal Crane introduction:

The Harbour Portal Crane is specialized equipments for pilling containers with a large span, thus to make full use of the yard area, strengthen the piling capability of the yard and achieve estimation. They can be used to file containers in the docks, at inland transits and at railway container yards. The theoretical efficiency of them can be designed according to the customers' demands. The specifications combine maximum reliability and safety with high-operating efficiency, long-life, and low maintenance costs-leading to the lowest total cost of ownership.

Harbour Portal Crane Specification:

Load Capacity (ton)	Outreach (m)	Lifting height above rail/under rail (m)	Gauge (m)
5	15~25	15~25/10~15	8.0~12
10	15~25	15~25/10~15	8.0~12
15	15~25	15~25/10~15	8.0~12
20	20~35	20~35/10~15	9.0~12
25	20~35	20~35/10~15	9.0~12
30	20~35	20~35/10~15	9.0~12
40	20~50	20~35/10~15	9.0~12
50	20~50	20~35/10~15	9.0~12
60	20~50	20~35/10~15	9.0~12
80	30~60	20~50/10~15	9.0~12
100	30~60	20~50/10~15	9.0~12
120	30~60	20~50/10~15	9.0~12
150	30~60	20~50/10~15	9.0~12
200	30~60	20~50/10~15	9.0~12
250	30~60	20~50/10~15	9.0~12
300	30~60	20~50/10~15	9.0~12
Customizable	Customizable	Customizable	Customizable

Harbour Portal Crane Application:

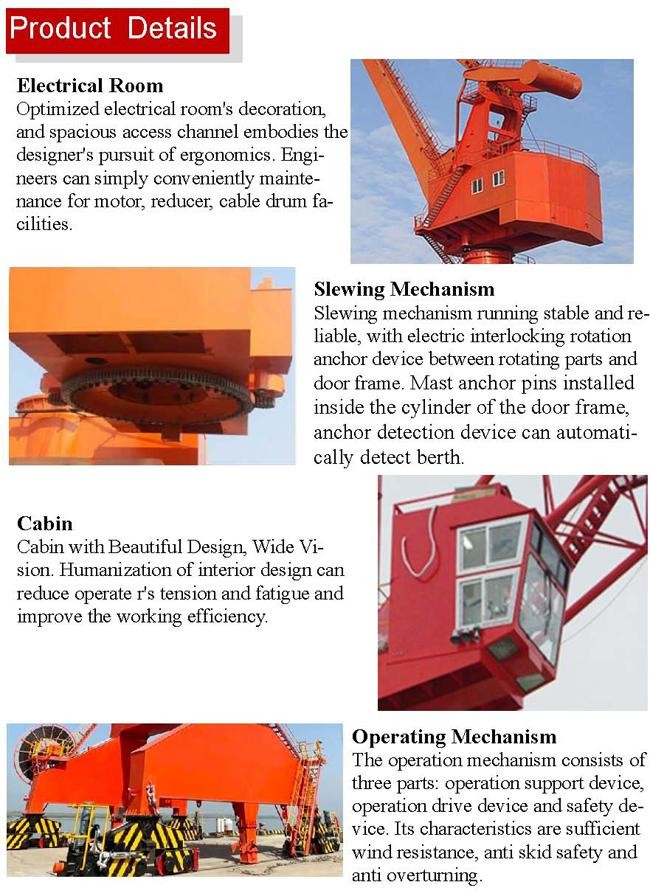

Loading and unloading at port, material handling at dockyard, ship building and repairing yard, metallurgy industry. They mainly include lifting mechanism, luffing mechanism, slewing mechanism, travelling mechanism, spreader device ( grab, container, and hook), electrical equipment and other aiding devices for safety. The applied rigid rack and screw lever luffing mechanism make sure a constant working state.
