High Strength C Type Lifting Hook Overhead Crane Spare Parts
Lifting Hook Introduction:
The hook group is the most common type of spreader in lifting
machinery. The hook is often suspended on the wire rope of the
hoisting mechanism by means of pulley blocks and other components.
According to the shape, the hook is divided into single hook and
double hook; according to the manufacturing method, it is divided
into forged hook and laminated hook.
Classification:
The classification of hooks is very wide, generally including:
shackles, rings, rings, pear-shaped rings, long rings, combination
rings, S hooks, nose hooks, American hooks, claw hooks, eye-shaped
sliding hooks, and safety card rings Screws and chain shackles have
the characteristics of unique, novel, high quality and safety, and
are suitable for factories, mines, petroleum, chemical and ship
terminals. Ensure safety, quality safety factor, static load up to
3 times. The lifting capacity is from 5 tons to 150 tons.
Lifting Hook Specification:
Crane forging hook |
Capacity: 1- 500t Pulley: 1- 12 pulley, use on overhead, gantry cranes and all kinds hoist, strength grade: M, P, S, T, V grade
|
Materials: |
M grade with DG20, or DG20Mn P grade with DG20Mn S grade with DG34CrMo T grade below 40t with DG34CrMo, more than 40t with DG34CrNiMo or
DG30Cr2Ni2Mo V grade below 40t with DG34CrNiMo or DG30Cr2Ni2Mo, more than 40t
with DG30Cr2Ni2Mo.
|
Model: |
Single hook:
5t/6t/10t/12t/16t/20t/25t/32t/40t/50t/63t/80t/100t/125t/160t/200t/250t Double hook:
10t/12t/16t/20t/25t/32t/40t/50t/63t/80t/100t/125t/160t/200t/250t/450t Hook Block model: 3.2t/ 5t/10t/16t/20t/25t/32t/50t/75t/100t/200t
and so on
|
Advantages:
1: We can produce crane parts according to customer requirements
and application condition.
2: Each production procedures of each part or items is checked and
supervised and recorded to ensure the quality of each part or item
and each unit of equipment
Application:
The single hook has the simple structure, which is easy to operate,
but its stress condition is bad so it is mainly used in the
workplace which with below 80 tons lifting capacity. When lifting
capacity is big, double hook is a better choose for its
load-bearing is symmetric.

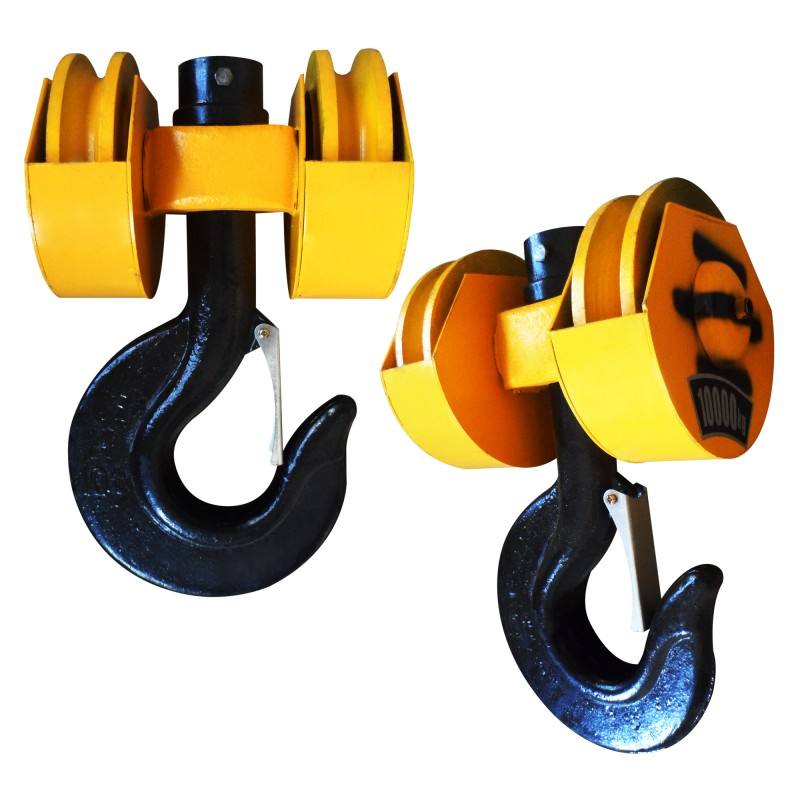

Lifting Hook Photos:
