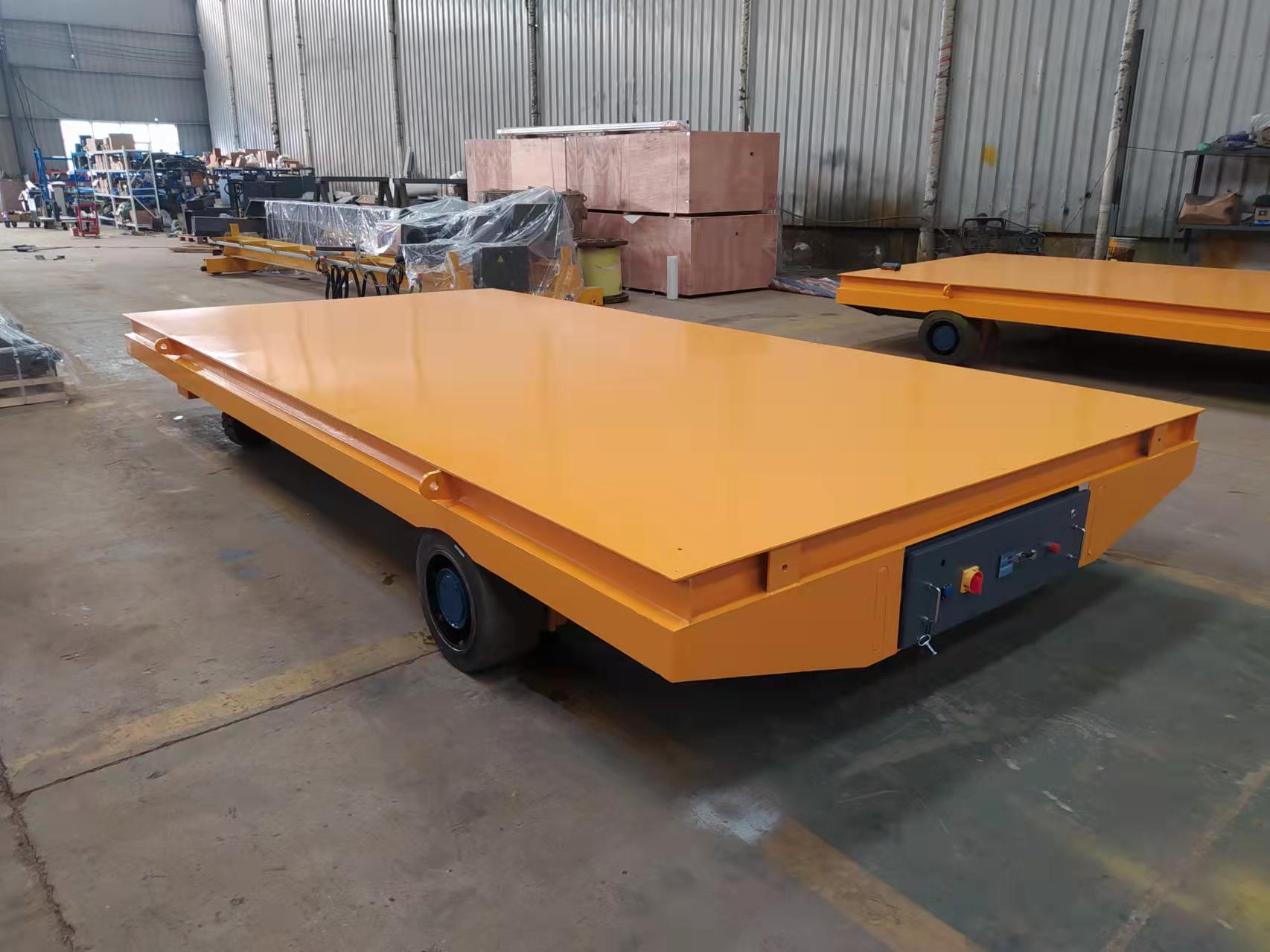

Made in China anti-explosion 20ton automatic heavy duty material
handling equipment electric flat cart tool trolley cart
20tons railless transfer cart Parameter:
| product name | material transfer trolley cart |
| capacity | 20ton or customized |
| main material | steel, battery, electronics |
| size | 4000*3000*400mm or customized |
| powered by | lithium battery or lead acid battery |
| working time | 5-6 hours |
| charging time | 7-8 hours |
| control | remote control,forward, back, left ,right, emergency stop. |
| main parts | motor, 4 wheels, battery, electrical control box |
| Wheel | 4,Polyurethane or rubber |
| IP grade | IP 44 or IP54(outdoor) |
| type | railless. with rail can be customized |
| guaranteed | 1 year |
| color | customized. |
| certificate | CE& ISO9001:2015 |
Lithium battery powered
Our transfer cart is usually powered by a lithium battery. Compared
to traditional lead-acid batteries, lithium batteries have a
shorter charging time (2 hours) and a longer life span of four to
five years.
Transfer cart frame
It is a box-type structure, Q235-B cast steel is refined, it is not
easy to be deformed, and the appearance is beautiful and durable.
,
Infrared induction
When the car encounters people or obstacles during the running, it
will be detected in advance and stop running.
Remote control Our transfer car comes standard with wireless remote control and
wired handle. Wireless remote control is more convenient. Can be
controlled from a distance. Dual remote control configuration, when
the wireless remote control is damaged, you can also use the wired
handle, which will not delay production.
Custom production design
1. Professional designers can provide reasonable solutions
according to your actual needs; We’ve supplied 5000+ cases to
customers all over the world.
2. Customizable size, load, stop, PLC automation, table lift,
explosion protection, high temperature resistance, etc.
3. Battery power supply, low-voltage rail power supply, cable power
supply, sliding line power supply, etc.
