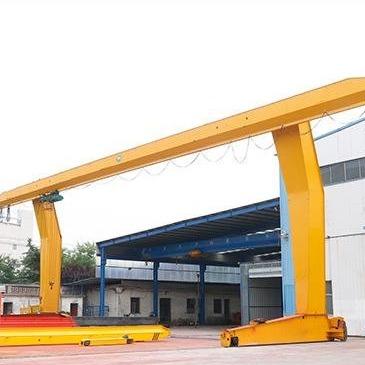

Single Box Beam L Leg Gantry Crane 50/10T With Double Cantilever

    Buy cheap Single Box Beam L Leg Gantry Crane 50/10T With Double Cantilever from wholesalers

    Buy cheap Single Box Beam L Leg Gantry Crane 50/10T With Double Cantilever from wholesalers
    • Buy cheap Single Box Beam L Leg Gantry Crane 50/10T With Double Cantilever from wholesalers
    • Buy cheap Single Box Beam L Leg Gantry Crane 50/10T With Double Cantilever from wholesalers

    Single Box Beam L Leg Gantry Crane 50/10T With Double Cantilever

    Ask Lasest Price
    Certification : CE ISO GOST
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 5000 sets per year
    Delivery Time : 30 workdays
    • Product Details
    • Company Profile

    Single Box Beam L Leg Gantry Crane 50/10T With Double Cantilever

    Single Box Beam L Leg Gantry Crane 50/10T With Double Cantilever


    Introduction:


    L-type single girder gantry crane, the metal structure is like a gantry frame. The main beam is box type, with good craftsmanship, easy production, high strength and strong adaptability. Two outriggers are installed under the main beam, which can be directly on the track. There can be cantilever beams at both ends of the main beam. L-type single-girder gantry cranes are mainly used for the loading and unloading of outdoor freight yards, storage yards and bulk cargo.


    Technical Parameter:


    Capacityt101620/1030/1036/1650/10
    Spanm18-3518-3018-3522-2626-3032
    DutymediummediummediummediumHeavyHeavy/medium
    lifting heightmainm11.512.510.511.511.512
    aux.//11121213
    speedhoistmainm/min18.412.39.210.410.46
    aux.//18.418.412.318
    traversing43.844.54441.95338.13
    travelling48.4-54.649.1-51.25151.251.143.8

    Single Box Beam L Leg Gantry Crane 50/10T With Double Cantilever


    Application:


    Gantry cranes are mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Its metal structure is like a door-shaped frame, and two feet are installed under the bearing main beam, which can walk directly on the track on the ground, and the two ends of the main beam can have outrigger cantilevers. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.


    Photos:


    Single Box Beam L Leg Gantry Crane 50/10T With Double Cantilever
