Span 12m MH Rail Mounted Gantry Crane , 10 Ton Single Beam Crane

Span 12m MH Rail Mounted Gantry Crane , 10 Ton Single Beam Crane

Introduction:

The gantry crane is actually a variant of the bridge crane, which is mainly used for the loading and unloading operations of outdoor cargo yards, stockyards, and bulk cargo.

Outriggers are the key to supporting the operation of the gantry crane. There are pulleys under the outriggers. During the operation, the track is placed in the working area, and the gantry crane can be driven to move freely in the working area, and the gantry crane can be placed according to the needs. The role of the outriggers of the gantry crane is fully highlighted at this time.

Technical Parameter:

Capacity			T	3	5	10	16	20
Span			m	12,16,20,24,30
Operational method				Pendent Line With Press Button /Cabin/ Remote
Speed	Lifting		m/min	8 ,8/0.8	8,8/0.8	7,7/0.7	3.5	3.5
	Cross travelling			20	20	20	20	20
	Long travelling	Ground		20	20	20	20	20
	Long travelling	Cabin		20, 30,45	20, 30,40	30,40	30,40	30,40
Motor	Lifting		Type /kw	ZD41-4/4.5 ZDS1-4/0.4/4.5	ZD141-4/7.5 ZDS10.8/4.5	ZD151-4/13 ZDS11.5/4.5	ZD151-4/13	ZD152-4/18
	Cross travelling			ZDY12-4/0.4	ZDY121-4/0.8	ZDY21-4/0.8×2	ZDY121-4/0.8×2	YZD-4/0.8×4
	Long travelling	Ground		ZDY21-4/0.8×2 ZDY21-4/1.5×2	YZY22-4/1.5×2 YZR132M2-6/3.7×2	YZR22-4/1.5×2	YZR160M1-6/6.3×2 YZR160M2-6/8.5×2	YZR160M1-6/6.3×2 YZR160M2-6/8.5×2
	Long travelling	Cabin		ZDR100-4/1.5×2 ZDR112-4/2.1×2	YZR112L1-4/2.1×2 YZR160M1-6/2.1×2	YZR112L1-4/2.1×2 YZR160M2	YZR160M2-6/8.5×2 YZR160L2-6/11×2	YZR160M2-6/8.5×2 YZR160L2-6/11×2
Electric hoist			Model	CD1/MD1	CD1/MD1	CD1/MD1	CD1	HC
Lifting height			m	6,9
Working duty				A3
Power supply				380V 60HZ 3phase AC (According to your demand )

Advantages:

1. Module control speed, micro-speed and double speed;

2. Traveling and lifting smoothly;

3. The power for trolley moving adopts flat cable, sliding smoothly;

4. Control box layout is reasonable, easy to repair;

5. Protection class IP55;

6. Optional main power source ;

7. All external cable line number with mark;

8. Safety smooth touch line, high conductivity, small pressure drop;

9. Light weight, installation convenience;

10. Set electric taxi speed is high, ensure continuing power supply;

11. Optional speed control module, and can realize the micro speed and double speed.

Details:

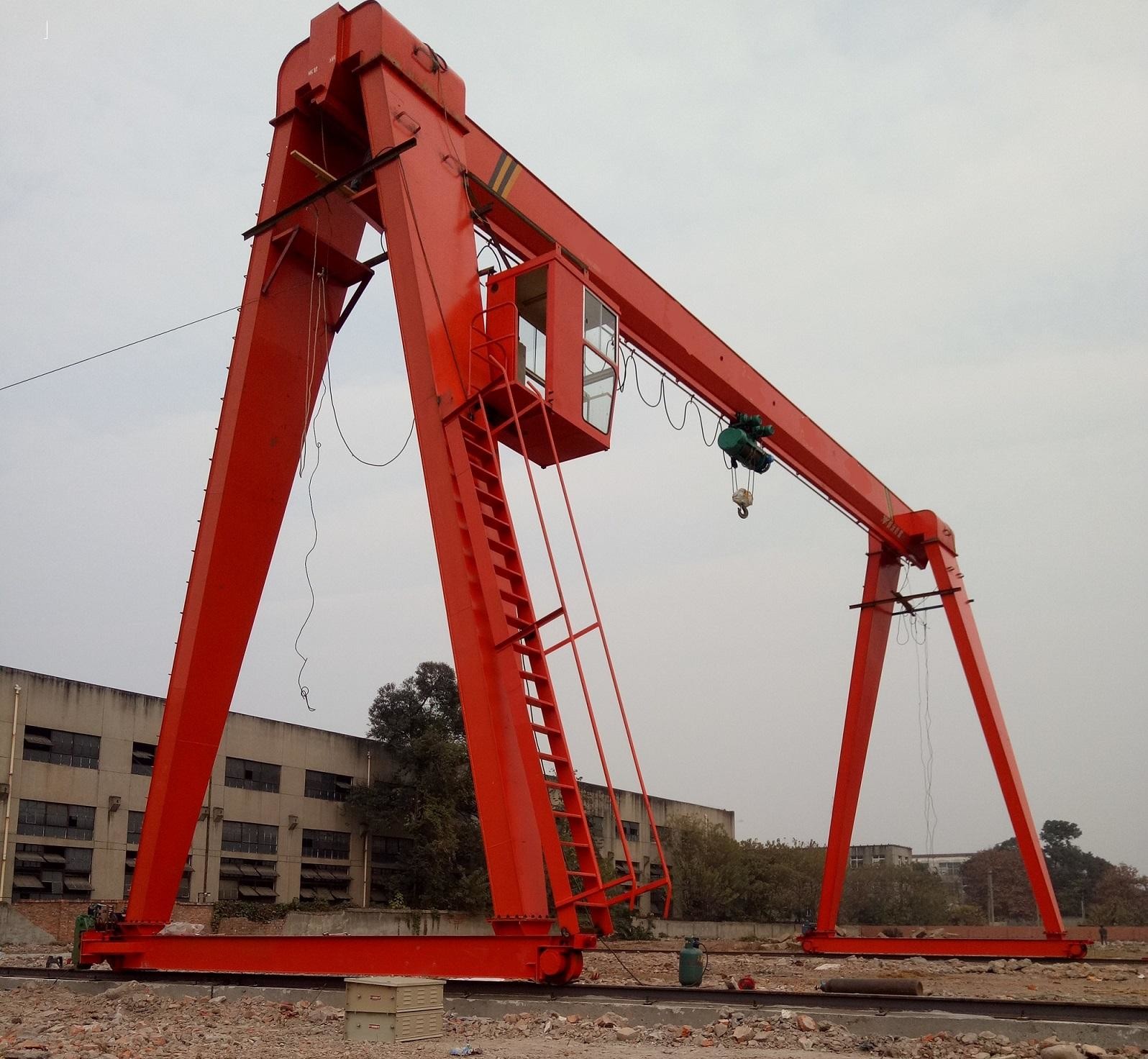

Span 12m MH Rail Mounted Gantry Crane , 10 Ton Single Beam Crane
