A5 - A7 Steel Plant Crane Double Girder Overhead Type 15M 5-50T
Double Girder Overhead Crane Introduction:
Explosion proof double girder overhead crane is suitable for
workshops and warehouses with inflammable and explosive mixtures.
It relies on the longitudinal movement along the direction of the
workshop track, the lateral movement of the trolley and the lifting
movement of the hook to work. This machine is suitable for
mechanical processing and assembly workshops, metal structure
workshops, mechanical maintenance workshops, metallurgy and foundry
workshops, and hoisting work in various warehouses.
Double Girder Overhead Crane Technical Parameter:
| Lifting weight(t) | 5-75ton |
| Span(m) | 10.5-31.5 |
Max Lifting
Height | main | 12m |
| aux | 14m |
| Working class | A3-A4 |
| Speed | Lifting | main | 1.9 |
| aux | 3.7 |
| Traveling of crab | 8.9 |
| Traveling of trolley | 12.5/12.6 |
| Motor | Lifting | main | YBZE225M-8/22KW |
| aux | YBZE225M-8/22KW |
| Total weight | Crab | 15.42t1 |
| cabin | 35.3-64.9 |
| Ground | 36.4-63.5 |
| Max wheel pressure | 333-450 |
Double Girder Overhead Crane Features:
1. Carefully select materials
The products are carefully selected for stable operation
2. Various models
Various specifications and models of hoisting machinery and
accessories
3. Diversified functions
Stable operation, flexible operation, high operation efficiency and
wide adaptability
4. Processing customization
Can be customized according to customer requirements
5. Timely delivery
Place an order number and deliver goods in time according to the
order requirements
Double Girder Overhead Crane Application:
Environmental conditions: The working power supply is three-phase
AC, the rated frequency is 50HZ, and the rated voltage is 380V; the
working environment temperature is -20~40℃. When working indoors at
40°C, the relative humidity should not exceed 50%, and when working
outdoors at 25°C, the relative humidity is allowed to be as high as
100% for a short time. The altitude of the installation site shall
not exceed 2000m. It is suitable for the maintenance and loading
and unloading of mechanical workshops, warehouses, stockyards, and
hydropower stations with medium and light duty systems. It is a
lifting equipment popularized and used in China.

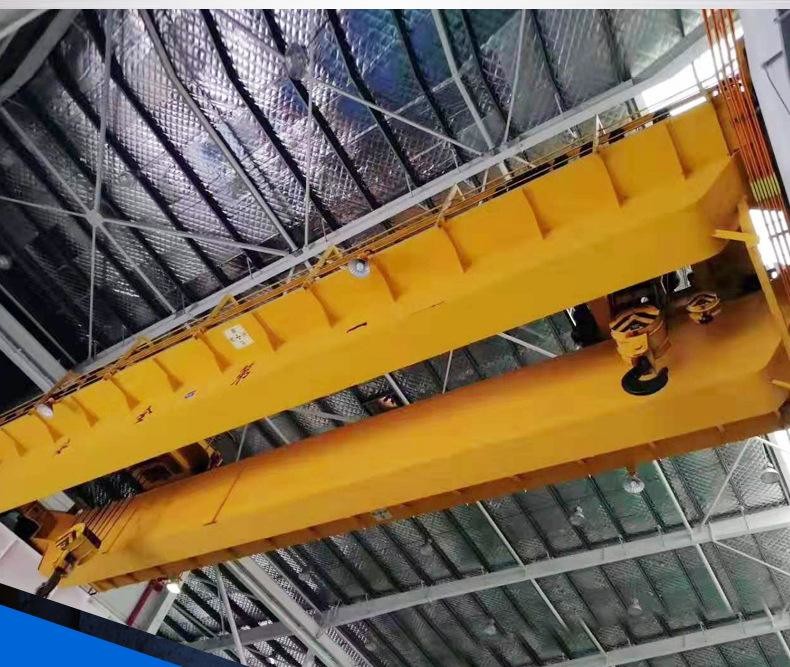

Double Girder Overhead Crane Photo:
