16 / 5T Double Girder Overhead Cranes For Industrial And Mining
Enterprises
Introduction:

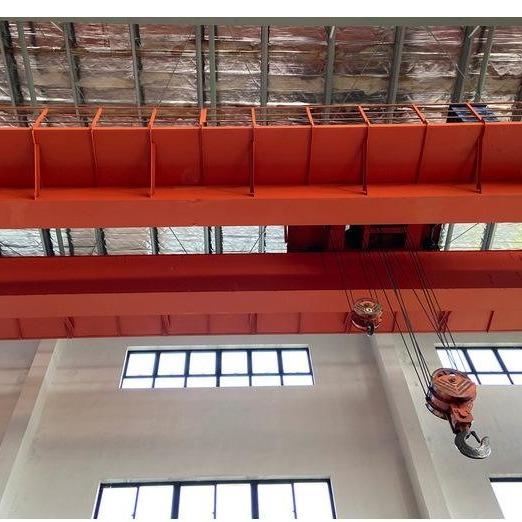

Double beam bridge crane is also known as double beam crane and
crown block. Its bridge runs longitudinally along the track laid on
the viaducts on both sides, and the lifting trolley runs
transversely along the track laid on the bridge, forming a
rectangular working range, which can make full use of the space
under the bridge to lift materials without being hindered by ground
equipment.
Technical Parameter:
| Technical Specifications |
|
| Lifting Capacity | Span | Lifting | Work Duty | Main Lifting | Vice Lifting | Trolley Traveling | Crane Traveling | Track |
| Height | Speed | Speed | Speed | Speed |
| | | | |
| t | m | m | | m/min | m/min | m/min | m/min | |
| 5 | 13.5~19.5 | 18 | A5 | 0.84~8.4 | | 3.4~34 | 5.1~51 | 38kg |
| 22.5~31.5 | 5~50 |
| 5 | 13.5~19.5 | 18 | A5 | 0.78~7.8 | | 3~30 | 5~50 | 38kg |
| 22.5~31.5 | 5.2~52 |
| 16/5 | 13.5~19.5 | 18/18 | A5 | 0.76~7.6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| 20/5 | 13.5~19.5 | 18/18 | A5 | 0.6~6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| 32/5 | 13.5~19.5 | 18/18 | A5 | 0.52~5.2 | 0.84~8.4 | 3.1~31 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 |
| Oct-50 | 13.5~19.5 | 18/18 | A5 | 0.43~3.9 | 0.78~7.8 | 3.6~36 | 4.8~48 | 43kg |
| 22.5~31.5 | 5.4~54 |
| Notes: Customizable |
Component:
Bridge cranes are generally composed of mechanical, electrical and
metal structures. The external appearance of the bridge crane is a
single span flat plate bridge with two ends supported on two
parallel overhead rails.
Mechanical part: it is divided into three mechanisms, namely
lifting mechanism, trolley running mechanism and cart running
mechanism. The lifting mechanism is used to vertically lift
articles, and the trolley running mechanism is used to carry the
load for lateral movement; The crane running mechanism is used to
move the lifting trolley and articles longitudinally to achieve
three-dimensional space for handling and loading and unloading
goods.
Metal structure: composed of bridge and trolley frame.
Electrical part: consists of electrical equipment and electrical
circuits.
Application:
Double girder overhead crane is an important tool and equipment to
realize mechanization and automation of production process in
modern industrial production and lifting and transportation.
Therefore, double-girder overhead cranes are widely used in indoor
and outdoor industrial and mining enterprises, iron and steel
chemical industry, railway transportation, port terminals and
logistics turnover departments and places.
