European Electric Double Beam Bridge Travelling Crane Compact
Structure And Stable Operation
Introduction:
Double-girder overhead crane is an important tool and equipment for
mechanization and automation of production process in modern
industrial production and lifting and transportation. Therefore,
double-girder overhead cranes are widely used in indoor and outdoor
industrial and mining enterprises, iron and steel chemical
industry, railway transportation, port terminals and logistics
turnover and other departments and places.
Technical Parameter:
| Cap (t) | 5/ 10 |
| Span (m) | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 |
Main Dimensions (mm) | H | 1763/1800 |
| H1 | 765 |
| H2 | 24 | 126 | 226 | 376 | 526 | 676 | 826 | 976 |
| H3 | 2396 | 2546 | 2646 | 2796 | 2946 | 3096 | 3246 | 3396 |
| H4 | 71-552 |
| K | 1400-2000 |
| W | 3400 | 3550 | 5000 |
| B | 5054 | 5204 | 5948 |
| b | 230 |
| Max. Wheel Load (KN) | 72-152 |
| Total Power (KW) | 10-15.5 |
| Lifting Height (m) | 16 |
| Hoisting Speed (m/min) | 5 |
Features:
1. Carefully select materials
The products are carefully selected for stable operation
2. Various models
Various specifications and models of hoisting machinery and
accessories
3. Diversified functions
Stable operation, flexible operation, high operation efficiency and
wide adaptability
4. Processing customization
Can be customized according to customer requirements
5. Timely delivery
Place an order number and deliver goods in time according to the
order requirements
Application:
Double girder overhead crane is an important tool and equipment to
realize mechanization and automation of production process in
modern industrial production and lifting and transportation.
Therefore, double-girder overhead cranes are widely used in indoor
and outdoor industrial and mining enterprises, iron and steel
chemical industry, railway transportation, port terminals and
logistics turnover departments and places.

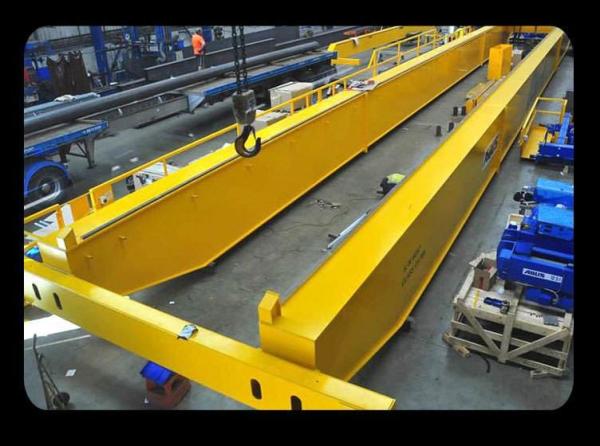

Photos:
