Handling Bulky Materials Hydraulic Static Scissor Lift Table 380V 50HZ

Ask Lasest Price
Certification :	CE ISO GOST
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	5000 sets per year
Delivery Time :	30 workdays

Add to Cart

Product Details
Company Profile

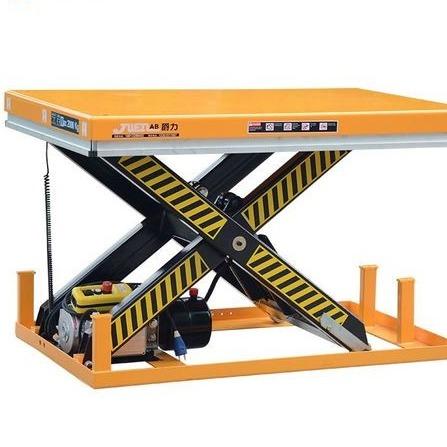

Handling Bulky Materials Hydraulic Static Scissor Lift Table 380V 50HZ

Static Hydraulic Lifting Table Scissor Fork Structure For Handling Bulky Materials

Hydraulic Lifting Table Introduction:

Scissor lifts offer the most stable, reliable and versatile method of lifting heavy objects. Due to its simplicity, few moving parts, maintenance-free bushings, and wide acceptance by customers, scissor tables can provide years of trouble-free operation with relatively small capital investment.

Hydraulic Lifting Table Technical Parameter:

Capacity	Lowered Height	Raised Height	Platform Size	Base Frame Size	Lift Time	Power Pack	Net Weight
(kg)	(mm)	(mm)	(mm)	(mm)	(second)		(kg)
1000	205	990	820×1300	640×1240	20~25	380V/50HZ,AC 1.1kw	160
1000	205	990	1000×1600	640×1240	20~25	380V/50HZ,AC 1.1kw	186
1000	240	1300	850×1700	640×1580	30~35	380V/50HZ,AC 1.1kw	200
1000	240	1300	1000×1700	640×1580	30~35	380V/50HZ,AC 1.1kw	210
1000	240	1300	850×2000	640×1580	30~35	380V/50HZ,AC 1.1kw	212
1000	240	1300	1000×2000	640×1580	30~35	380V/50HZ,AC 1.1kw	223
1000	240	1300	1700×1500	1580×1320	30~40	380V/50HZ,AC 1.1kw	365
1000	240	1300	2000×1700	1580×1320	30~40	380V/50HZ,AC 1.1kw	430
2000	230	1000	850×1300	785×1220	20~25	380V/50HZ,AC 2.2kw	235
2000	230	1000	1000×1600	785×1220	20~25	380V/50HZ,AC 2.2kw	268
2000	250	1300	850×1700	785×1600	25~35	380V/50HZ,AC 1.5kw	289
2000	250	1300	1000×1700	785×1600	25~35	380V/50HZ,AC 1.5kw	300
2000	250	1300	850×2000	785×1600	25~35	380V/50HZ,AC 1.5kw	300
2000	250	1300	1000×2000	785×1600	25~35	380V/50HZ,AC 1.5kw	315
2000	250	1400	1700×1500	1600×1435	25~35	380V/50HZ,AC 2.2kw	415
2000	250	1400	2000×1800	1600×1435	25~35	380V/50HZ,AC 2.2kw	500
4000	240	1050	1200×1700	900×1600	30~40	380V/50HZ,AC 2.2kw	375
4000	240	1050	1200×2000	900×1600	30~40	380V/50HZ,AC 2.2kw	405
4000	300	1400	1000×2000	900×2000	45~50	380V/50HZ,AC 2.2kw	470
4000	300	1400	1200×2000	900×2000	45~50	380V/50HZ,AC 2.2kw	490
4000	300	1400	1000×2200	900×2000	45~50	380V/50HZ,AC 2.2kw	480
4000	300	1400	1200×2200	900×2000	45~50	380V/50HZ,AC 2.2kw	505
4000	350	1300	1700×1500	1620×1400	35~45	380V/50HZ,AC 2.2kw	570

Why and where to use:

Great for moving bulky materials. Maximize worker and machine productivity by hydraulically positioning work at the correct level.

Raise or lower feed or accumulations from machines or conveyor belts. Suitable for handling bulky materials.

Widely used in automobiles, containers, mold manufacturing, wood processing, chemical cans and other industrial enterprises and production lines.

Raises the load to the desired position to prevent back injuries and reduce flex caused by heavy-duty tasks such as lifting and bending.

Hydraulic Lifting Table Details:
