3 Ton Fixed Hydraulic Scissor Lifting Table For Cargo Lift 2-12M height

Ask Lasest Price
Certification :	CE ISO GOST
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	5000 sets per year
Delivery Time :	30 workdays

Add to Cart

Product Details
Company Profile

3 Ton Fixed Hydraulic Scissor Lifting Table For Cargo Lift 2-12M height

3 Ton Fixed Hydraulic Electric Twin Scissor Tables For Cargo Lift

Hydraulic Electric Lifting Table Introduction:

Our twin scissor tables are designed for handling long and cumbersome loads. Two (or more) scissors in an end-to-end configuration provide the required combination of platform length and lifting capacity. The stroke is achieved safely with precisely controlled synchronization and parallelism.

Technical Parameter:

CAPACITY	LIFT STROKE	CLOSED HEIGHT	WIDTH	LENGTH
1000	900	230	1000	2750
2000	1250	260	2000	4000
2000	1600	300	1500	4550
2000	2000	300	1500	6000
2000	2000	300	2000	6000
2000	900	240	1000	2750
3000	2000	300	1500	6000
3000	1250	260	1200	4050
3000	1250	260	1000	3650
3000	900	240	1000	2750
3000	1600	300	1000	4550
3000	2000	300	2000	6000
4000	1600	340	1200	4550
4000	1300	340	1200	4050
4000	1100	300	1000	3650
4000	1600	340	2000	4550
4000	2000	340	1500	6000
4000	2000	340	2000	6000
5000	1100	300	1000	3650
5000	1600	340	1200	4550
5000	2000	340	1500	6000
5000	2000	400	2000	6050
5000	1600	340	2000	4550
5000	1300	340	1200	4050
6000	2000	400	1500	6050
6000	2000	400	2000	6050
6000	1600	340	2000	4550
6000	1600	340	1200	4550
6000	1300	340	1200	4050
6000	1100	340	1200	3650
8000	2000	400	2000	6050
8000	2000	400	1500	6050
8000	1600	400	2000	5050
8000	1600	400	1200	5050
8000	1300	400	1200	4550

Application:

Ideal for handling bulky materials. Work at the right level with hydraulic positioning to maximize worker and machine productivity.

Lift or lower feed or build-up from machines or conveyor belts. Suitable for handling bulky materials.

Widely used in automobiles, containers, mold manufacturing, wood processing, chemical canning and other industrial enterprises and production lines.

Photo Details:

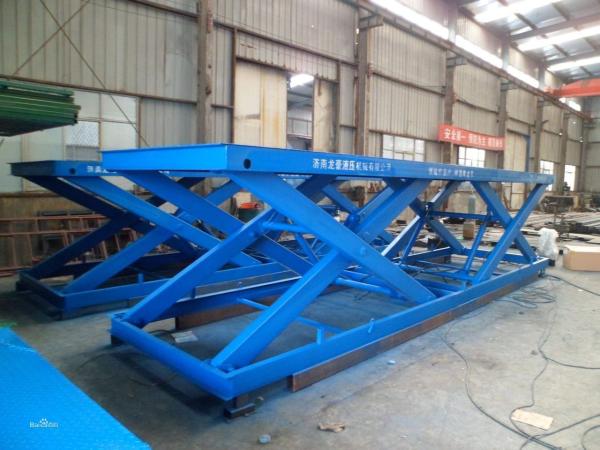

3 Ton Fixed Hydraulic Scissor Lifting Table For Cargo Lift 2-12M height
