Hydraulic Vertical Platform Lift Automatic Scaffolding
Self-Propelled 16m
Hydraulic Lifting Platform Information:
Self-propelled scissor lift platform with automatic walking
function, can be in different working conditions, no external power
supply, no manual traction, mobile and flexible, easy to operate,
lift freely, just one person can complete the forward, backward,
turn, fast, slow Speed walking and up and down movements save labor
and effort.
Self-propelled scissor lift platform does not need external power
supply, does not need external force to drive traction and lift up
and down freely. Only need one person can operate in the air to
complete up and down, forward, back, turn and so on.The fork lift
type lifting platform has the advantages of flexible movement,
convenient operation, labor-saving and time-saving, making the
aerial work more convenient and fast.
Hydraulic Lifting Platform Specification:
product specifications | GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 |
| working height | 7.8m | 10m | 12m | 13.8m |
| platform height | 5.8m | 8m | 10m | 11.8m |
| platform height stowed | 1.07m | 1.23m | 1.37m | 1.49m |
| platform length | 1.67m | 2.27m | 2.27m | 2.27m |
| platform extension length | 0.9m | 0.9m | 0.9m | 0.9m |
| platform width | 0.76m | 0.81m | 1.17m | 1.17m |
| overall height | 2.18m | 2.34m | 2.48m | 2.59m |
| overall length | 1.86m | 2.42m | 2.42m | 2.42m |
| overall width | 0.76m | 0.81m | 1.17m | 1.17m |
| wheelbase | 1.31m | 1.87m | 1.87m | 1.87m |
| ground clearance | 0.1m | 0.1m | 0.1m | 0.1m |
| lift capacity | 230kg | 230kg | 320kg | 320kg |
| lift capacity-extension deck | 113kg | 113kg | 113kg | 113kg |
| lift up | 27s | 37s | 45s | 50s |
| lift down | 22s | 32s | 35s | 38s |
| weight | 1415kg | 2250kg | 2440kg | 2860kg |
| drive speed ( platform lowered ) | 0-5km/h | 0-3.5km/h | 0-3.5km/h | 0-3.5km/h |
| drive speed ( platform elevated ) | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h |
| turning radius-inside | 0 | 0 | 0 | 0 |
| turning radius-outside | 1.64m | 2.10m | 2.14m | 2.14m |
| gradeability | 30% | 25% | 25% | 25% |
| maximum tilt | 3° | 3° | 3° | 3° |
| non-marking solid tires | 15×5 | 15×5 | 15×5 | 15×5 |
| battery | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah |
| charger | 30A automatic | 30A automatic | 30A automatic | 30A automatic |
Hydraulic lifting platform Application:
The operator only needs to master the control handle in front of
the equipment to complete the equipment forward, backward,
steering, fast and slow walking, up and down and other actions.
Flexible movement, easy operation, labor-saving and labor-saving.
It is especially suitable for a wide range of aerial work such as
stations, docks, airports, power plants, stadiums, large
enterprises, etc., and is currently the most ideal aerial work
equipment.

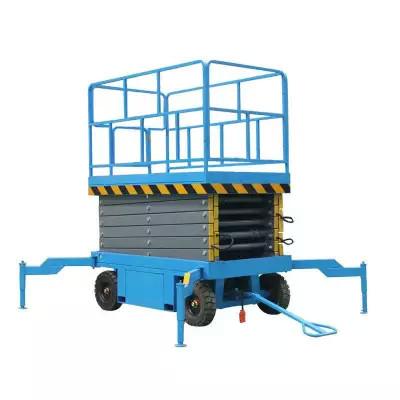

Hydraulic Lifting Platform Photos:
